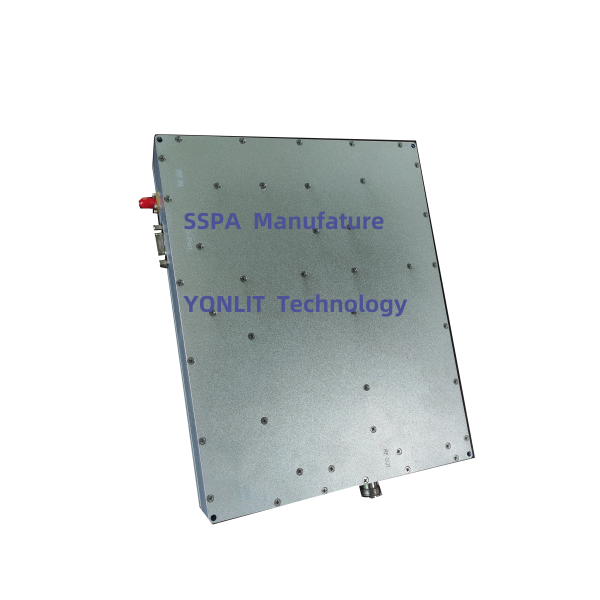

1.2GHz 500W Amplifier

HPA  1150-1280MHz 500W

Frequency Range:  1150-1280MHz

Gain:    >53dB ± 1.5dB

Pin  :    0dBm

Pout:     >500W

RF IN/Out  VSWR:     < 2.0

Working Voltage      50VDC

Working Current:     <22A

Power Connector:   Pull-core Capacitor

RF IN Port:          SMA-K

RF Out Port:      N-K

Dimension :       200x160x25mm ( Exclusive Connector）

Working Temperature:   -25 to 65℃

Protection:    Alarm and Shutdown more than 75℃, auto-restart less than 50℃

                         Alarm and Shutdown over High-VSWR, auto-restart after 30s

Monitoring :  Forward Power, Reversed Power, Temperature, Current

Control:  31dB attenuation, EN PA,
