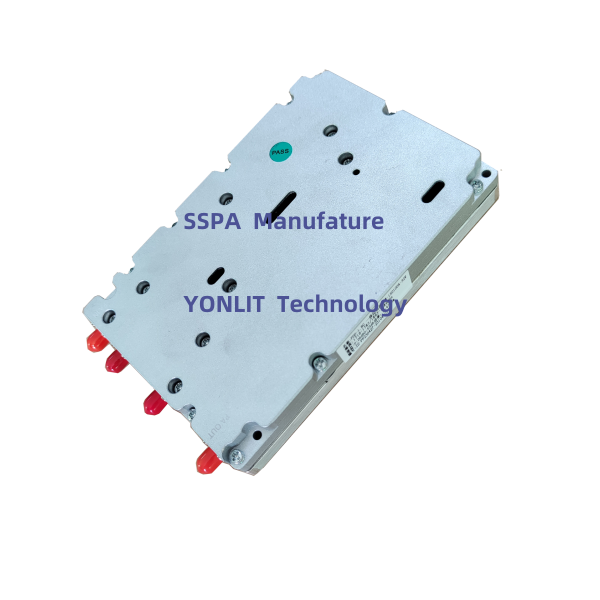

20W LTE 2.6GHz PA for coverage

FDD 20W 45dBC Linear RF PA for SDR & Micro-BTS

PA Part (Downlink )

Frequency: 2110-2170MHz

Pout: 42dBm±0.5dB

Max Gain: 50±2dB

Gain Adjust: 31dB

ACPR: ≤-45dBc @5M Bandwidth

VSWR: <1.5

Spurious: In-band: <-36dBm/30kHz

Out-band: <30dBm/30kHz

LNA Part (Uplink)

Frequency: 1920-1980MHz

Pout: 0dBm±1dB

Noise Figure：<2.0

Max Gain: 20±1dB

VSWR: <1.5

Spurious: In-band: <-36dBm/30kHz

Out-band: <30dBm/30kHz

Communal Part

Working Current: <4.5A @28VDC

RF Connector: PA Out, LNA In: SMA-KFD

PA In, LNA Out: MCX

Dimension: 170×100×20mm

Working Temperature: -25～+65℃

Monitoring Part

Connector: PHD2.0, 2*5PIN

PIN3: PA EN 3.3V or hanging in air : ON;

0V or grounding: OFF

PIN2: RS485A; PIN1:RS485B

PIN5,7: GND; PIN3,4,8: NC.

RS485 Protocol: China Mobile Standard for Mobile BDA, 9600
