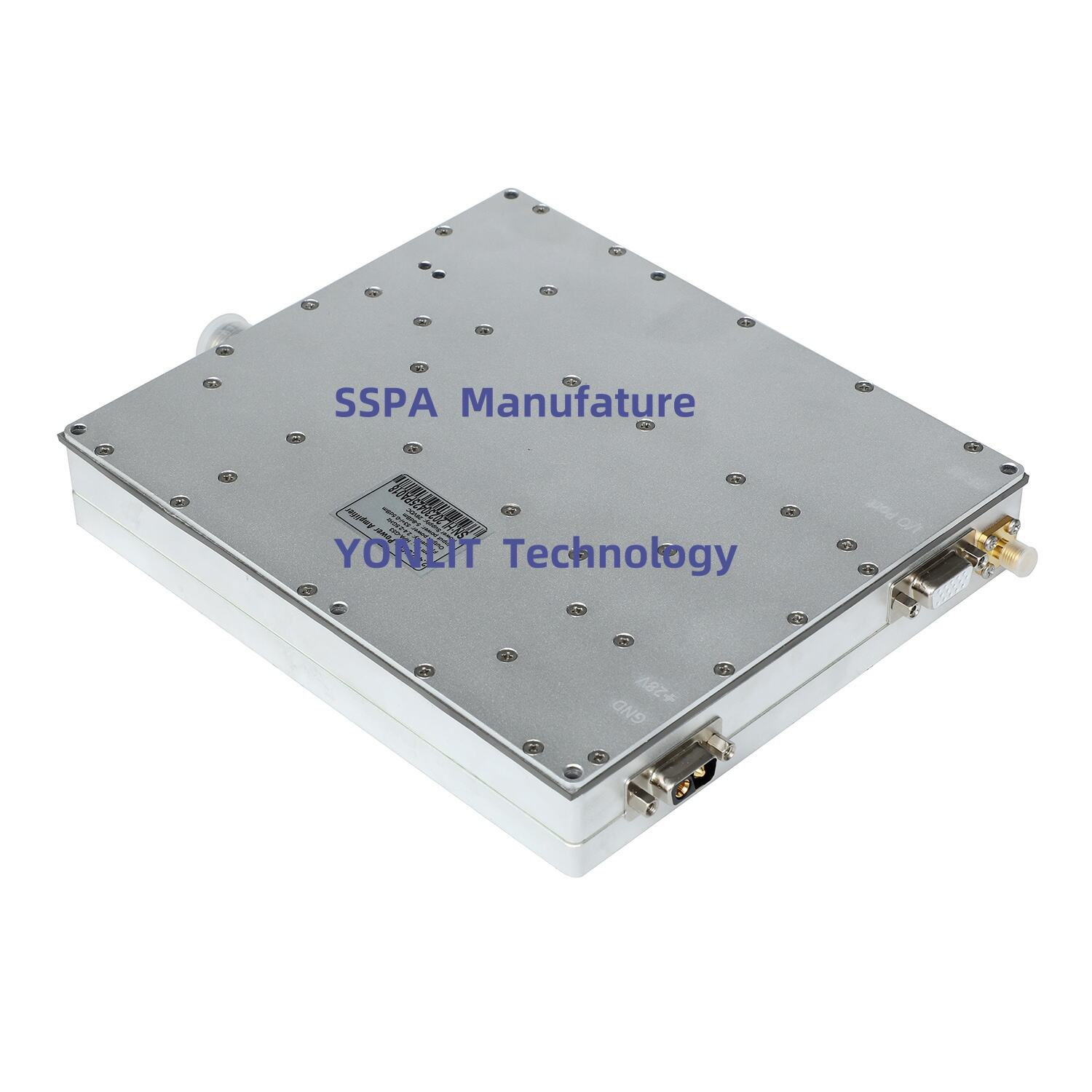

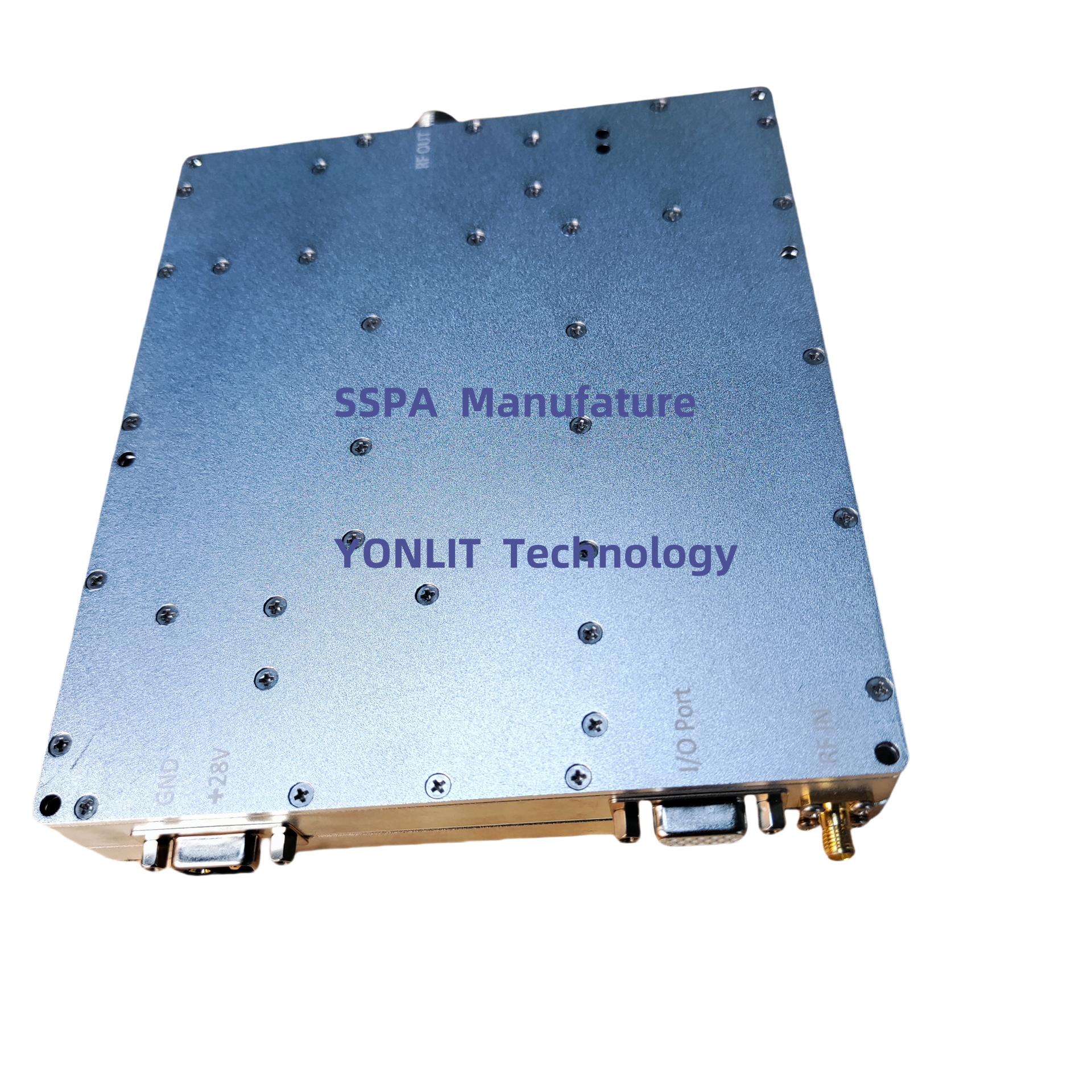

Frequency:3.4-3.5/3.5-3.7GHz
Pout: >50W
Modulation Type: CW/FM/AM
Working Voltage: 28VDC
|
Place of Origin: |
Shenzhen, China |
|
Brand Name: |
YONLIT, OEM，ODM |
|
Model Number: |
HPG47(3400-3700MHz) |
Main Applications: Jamming, blocking, Lab equipment,factory
Government vehicle communication, Electronic warfare, electronic countermeasure, anti drone, counter UAV, Government vehicle communication, Anti satellite navigation. SDR,
Key specification:
Pout >100W at any frequency in 3.4-3.55GHz, or 3.55-3.7GHz
Pout>100W from -25℃ to 80℃
Description
Main Feature:
The general Power Amplifier can be used wide-band or narrow-band
Pout is stable over -20~65℃
Efficiency is more than 30% for 100W
Over-high temperature protection, Shutdown more than 75℃, auto-restart less than 50℃
DB15 serial port is standard,is optional(China Mobile Protocol)
Remarks
PA should be operating on an appropriate radiator, otherwise it will shut down by over high-temperature.
Pout port cannot open or short, otherwise may burn and damage PA.
Pout port should be connect to a probably Load, Attenuator or antenna (50 ohms, more than 100W handling Power, lower than VSWR 2.0). .
The power supply range and polarity of power supply must be correct, otherwise will damage the PA.
Pout probably lower than the rated power when input Power less than 5dBm; PA probably is damaged if input power is higher than 15dBm
Specifications:
|
Item |
Requirements |
|
Frequency Range |
3400-3700MHz |
|
or customized |
|
|
Pout(CW) |
>50dBm |
|
RF Signal Type |
CW/FM/AM |
|
Pin (CW) |
3-8dBm |
|
Max Pin |
12dBm |
|
VSWR |
≤1.5 |
|
Working Voltage |
28VDC±1V |
|
Working Current |
≤7A |
|
RF IN connector |
SMA-Female |
|
RF Out connector |
N--Female |
|
Power Supply Interface |
Pull-core Capacitance |
|
Dimension |
Less 180x110x25mm |
|
Working Temperature |
-25 to 65℃ |
|
Protection |
Shutdown more than 75℃, auto-restart less than 50℃ |
|
Shutdown when reversed power more than 50W |
|
|
I/O (DB15 Female) |
PIN7: Reverse RF Power, 0.5-4V |
|
PIN10: Forward RF Power, 0.5-4V |
|
|
PIN11: LE :Enable, High Level: OFF; Low Level: ON |
|
|
PIN12: TA (Temperature alarm, 5V, Normal: 0V) |
|
|
PIN13: VA (VSWR Alarm: 5V; Normal: 0V ) |
|
|
PIN14: TV (Temperature:0.01V/1℃) |
|
|
PIN15: GND |
I/O Port
|
DB15F |
Description |
IN/Out (D/A) |
|
PIN7 |
Pr (reversed RF Power, 0-5V) |
Out, Analog |
|
PIN10 |
Pf (Forward RF Power, 0.05V/dB, 20dB range, 2-2.3V@47dBm) |
Out, Analog |
|
PIN11 |
EN (5V: PA OFF; Hang in air or grounding: PA ON) |
IN, Data |
|
PIN12 |
TA (Temperature alarm, Alarm: 5V, Normal: 0V) |
Out, Data |
|
PIN13 |
VA (VSWR Alarm, Alarm: 5V, Normal: 0V) |
Out, Data |
|
PIN14 |
Tc (Temperature:0.01V/1℃, 0.75V @25 ℃ ) |
Out, Analog |
|
PIN15 |
GND |
GND |
