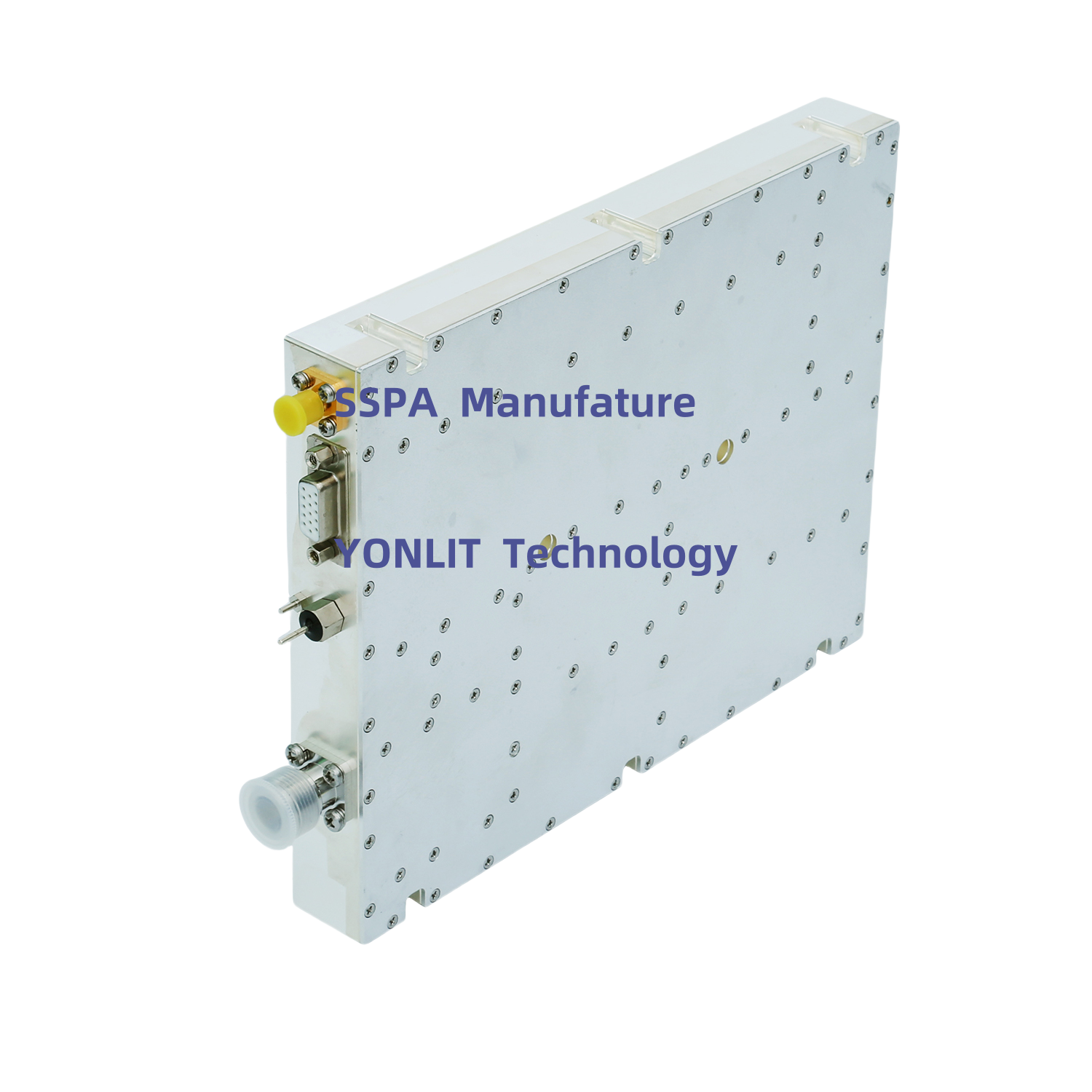

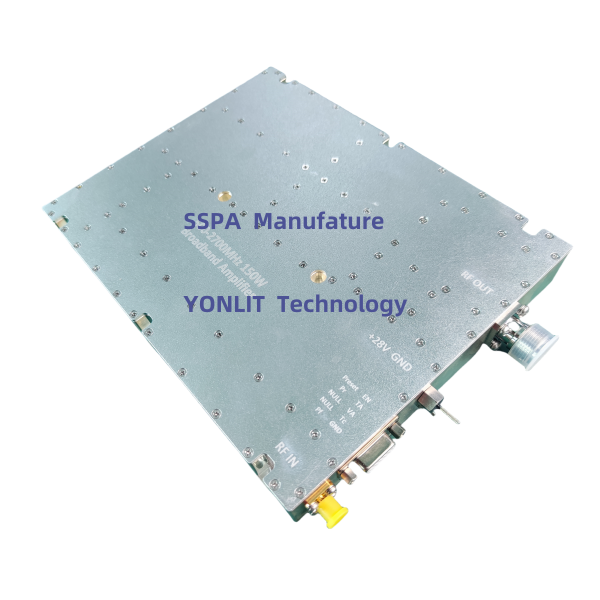

500-2500MHz 150W Broadband Amplifier

Main uses: Government vehicle communication, Electronic warfare, electronic countermeasure, anti drone, counter UAV, Government vehicle communication, Anti satellite navigation. SDR,

Feature

• Output Power is stable more than 150W  over -20~85℃
• Output Power is stable more than 150W over 400-2700MHz
• GaN Device  ensure high efficiency and ultra broadband.
• Continuous wave output  suitable for   CW ,FM or AM modulation
• Super Broadband  Power Amplifier can be used in frequency hopping system
• ALC control function of output power  or working current
• Protection over High VSWR   and shutdown

* Over-high VSWR to avoid or reduce the damage from any mismatch

• Protection  over  short or open of output port
• Pout and Gain of Temperature  compensation
• High Temperature Protection and re-start when temperature low down.

* Over-high temperature protection, Shutdown more than 75℃, auto-restart less than 50℃

• Protect   over   high-voltage(36VDC) or  low-voltage(22VDC)  and shutdown
• Monitoring and control I/O port of serial RS485 is optional

Description

• The input signal level, please refer the range as -3 to +3dBm. If input signal higher than the range, it might reduce lifespan of PA;  If input signal higher than +8dBm, it might damage the PA.
• It must use suitable radiator (which enough for PA radiating requirement) and radiating system with Fans (PA have built-in High temperature protection as well).
• When install PA, please inspect bottom surface is very smooth and spread on Thermal grease with above 4.0 thermal conductivity.
• Long time output short circuit or open circuit might damage PA.
• RF Input and RF Output connector cannot be pull out or plug with Power on.
• We suggest the maximum working temperature for PA surface no more than 75℃.
• The power line for PA should burden 28VDC,20A Current.
• If working voltage is reversed polarity to PA, PA would be damaged.

Specifications:

I/O Port
